AFH 50 CE tank

Details

AFH 50 CE tank

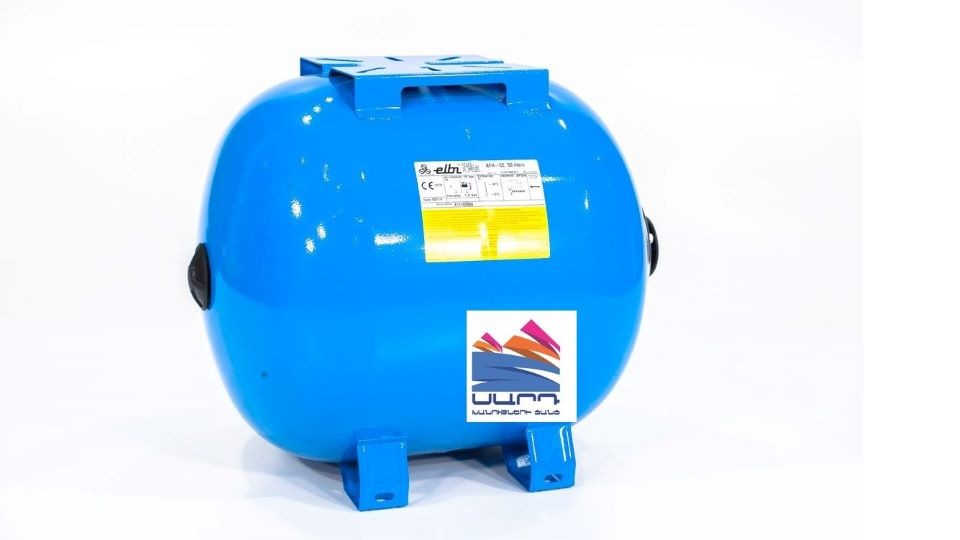

The ELBI AFH-50 CE hydraulic accumulator is a special installation designed to store a certain reserve of water, as well as to reduce the load on the pump and prevent water shocks.
ELBI AFH series hydraulic accumulators are a tank made of high-strength steel with a built-in EPDM membrane, and its location is arranged so that a free space filled with gas or air remains between it and the walls of the tank. All materials from which ELBI accumulators are made are equipped with anticorrosive qualities and are not subject to chemical and physical reactions with water.

Advantages of the ELBI AFH-50 CE hydraulic accumulator:

The epoxy powder coating applied to the tank body is stable and does not corrode, and is also protected from atmospheric pressure;
No contact between water and the inner surface of the tank, complete isolation of air and water;
Replaceable EPDM membrane, quite flexible for full filling of the tank with water, increases the service life and is used for household needs;
Reducing the risk of water pollution - the membrane protects against various harmful substances that affect water quality: oil, pathogenic bacteria, smoke, dust;
The operating temperature range of the liquid is from -10 °C to +99 °C;
Significant energy savings - reduces the frequency of pump on/off.

Installation type Horizontal

The type of destination is Universal

Tank capacity, l 50

Air pressure in the tank, 1.5 bar

Maximum working pressure, 10 bar

Connection diameter, inch 1"

Temperature range, °C From -10 to +99

Tank body material Steel

Length, mm 515

Height, mm 425

Diameter, mm 400

Country of origin Italy
