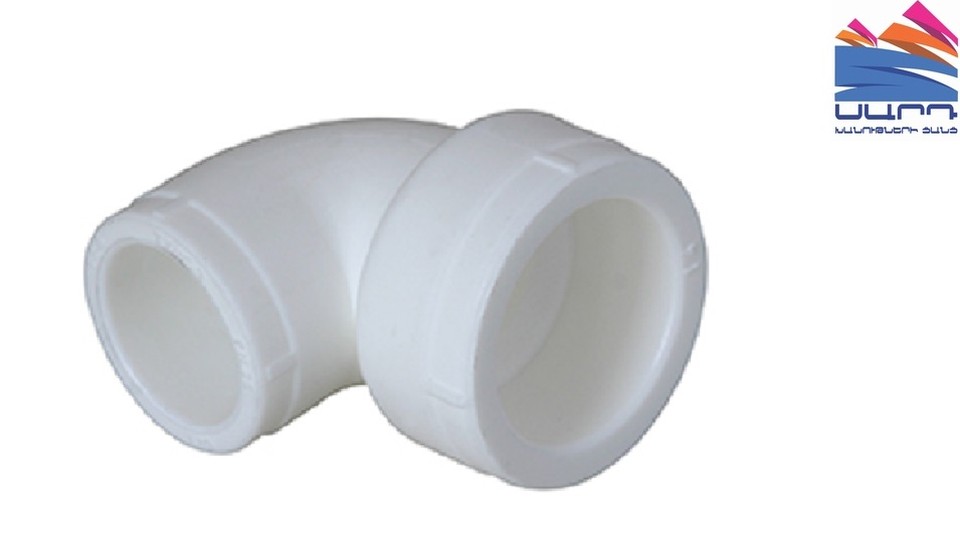

Transition square 90 25-20 MM

Details

A polypropylene transition corner of 25x20 mm is used to change the direction of polypropylene pipes of equal diameter by an angle of 90 degrees with the simultaneous device of a transition node to a pipe of another diameter. The transition square of 25x20 mm is convenient for welding when it is necessary to switch to a pipe with a different diameter, using such a square you can do without an additional coupling.

The transition square is a universal part and is suitable for welding all types of pipes, whether reinforced or not reinforced. They are welded to pipes using a soldering iron for polypropylene pipes.

Technical characteristics of the transition square 25x20:
Maximum pressure — 25 atm;
Maximum operating temperature — 95oC;
Size — 25x20 mm;
Angle of rotation — 90 gr;
Color — white;
Welding time:
For a diameter of 25 mm:

Heating time — 7 sec.;
Connection time — 4 sec.;
Cooling time — 3 min.;
Weld length — 18 mm;
For a diameter of 20 mm:

Heating time — 7 sec.;
Connection time — 4 sec.;
Cooling time — 2 min.;
Weld length — 16 mm;
