Futorka 3/4"HP1/2" BP

Details

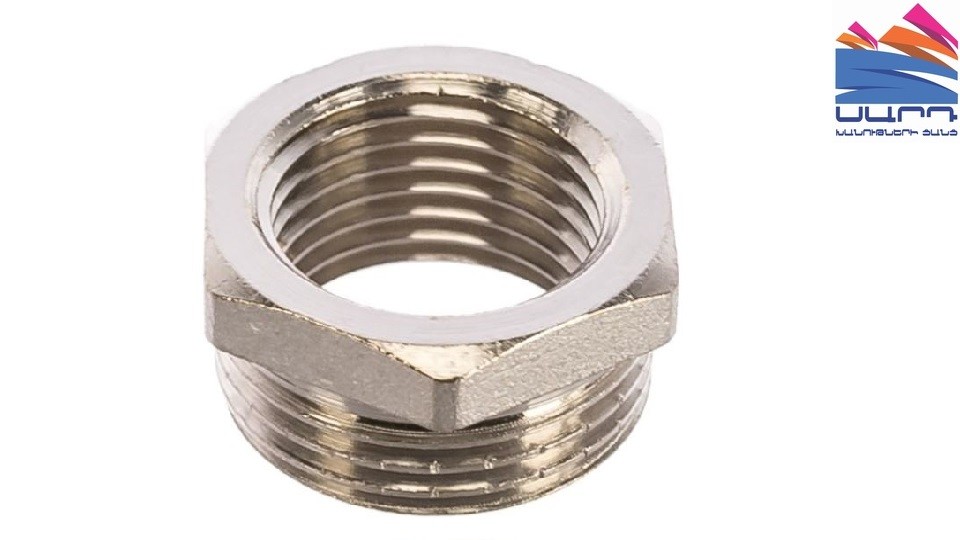

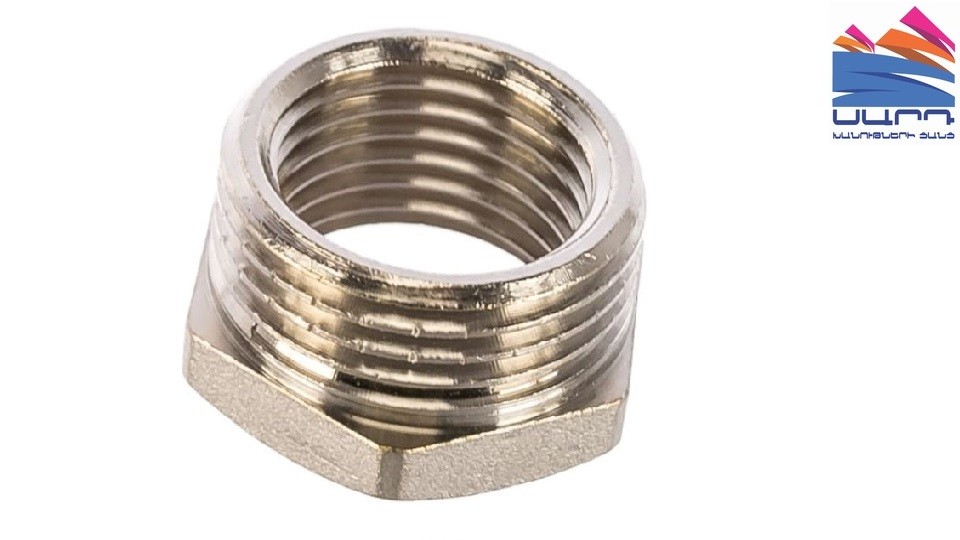

Futorka is a fitting that provides connection of pipes of different sizes, connection of the pipeline to a system element with a large diameter of the connecting pipe, repair (replacement) of damaged threads. The product is made of CW617N brass, nickel-plated. Thread – external/internal, by type – cylindrical tube, compatible with external conical . The hexagonal head of the futorka serves to screw it in with a wrench. The maximum operating pressure of using the connector depends on the ambient temperature: 250 °C – 2.7/1.7 bar, 200 – 3,0/2,7, 120 – 40/25 ( up to/more than 1”).

Purpose connection of pipes of different sizes, connection of the pipeline to a system element with a large diameter of the connecting pipe

Brand "Valtec"

Code VTr.581.N.0504

External/internal thread (tubular cylindrical/external conical)

Sizes 3/4" x 1/2"

Material brass nickel plated

Maximum
operating pressure (250 °C) 2.7/1.7 bars.
200 – 3,0/2,7,
120 – 40/25 ( up to/more than 1”)

Country of origin Italy
