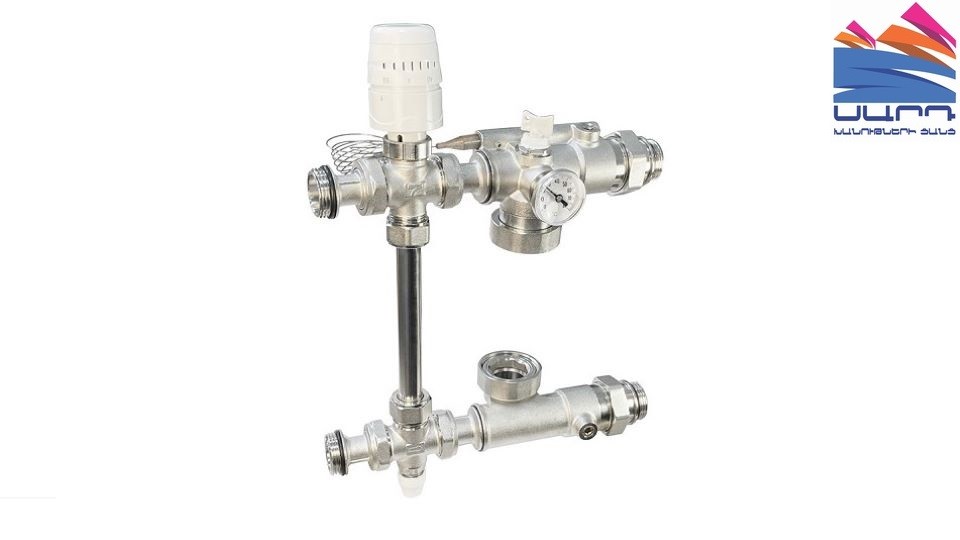

Mixer group Valfex without pump 1"

Details

Mixing units are designed to regulate the temperature of the coolant in a system where there are two or more heating circuits that require different temperatures for efficient operation. Most often, this is radiator heating and directly a warm water floor.

VALFEX mixing units are designed for use with collector units having a 210-millimeter center distance, placed in a distribution cabinet.

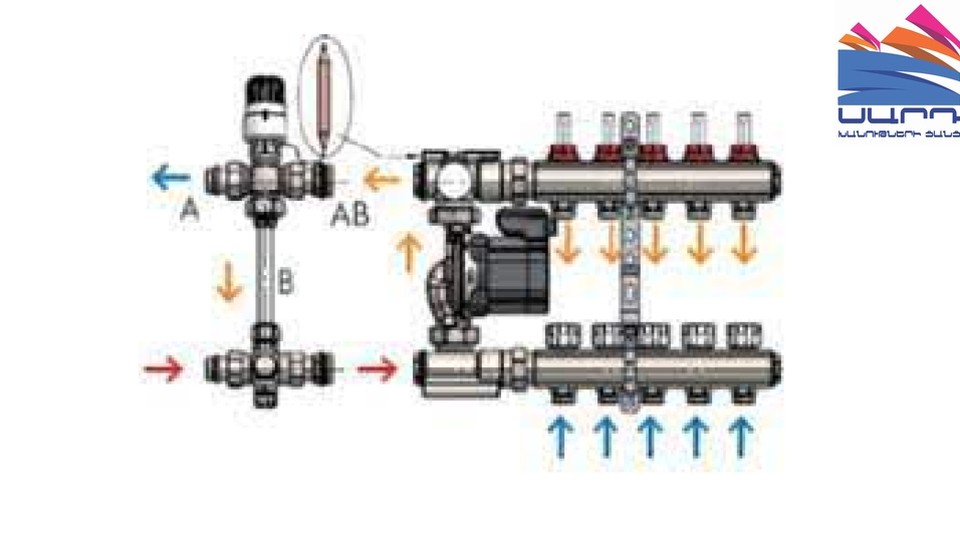

Purpose: to ensure the supply of coolant to both the radiator system and the underfloor heating system

Thread for the drive or thermal head: M30x1.5
The connecting size of the nozzles of the node, inches: G 1" BP/HP

Distance between output axes, mm: 210

Pump mounting length, mm: 130

Working pressure, bar: 10

Working environment temperature, °C: 90
Setting range of the thermal head, °C: 30-70

Average full service life, years: 15

Country of origin: Russia
