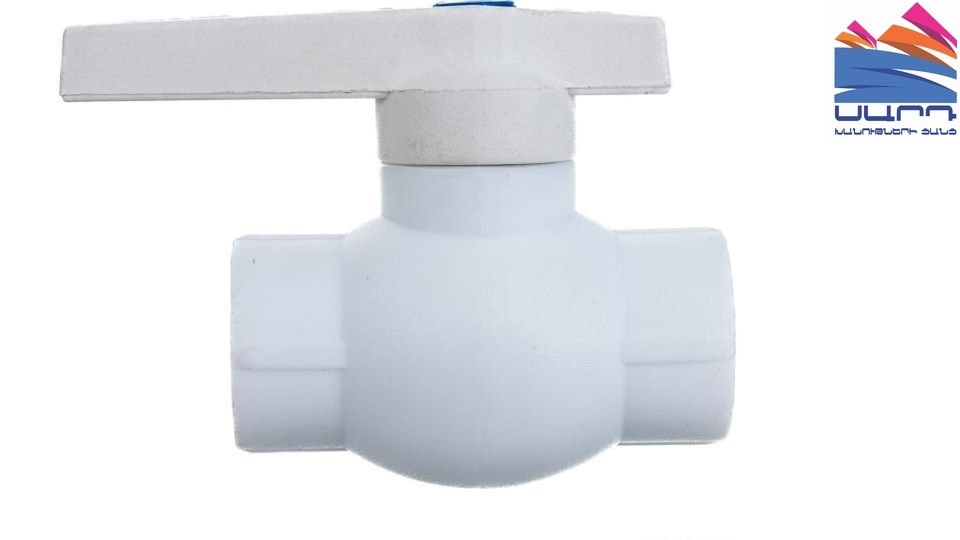

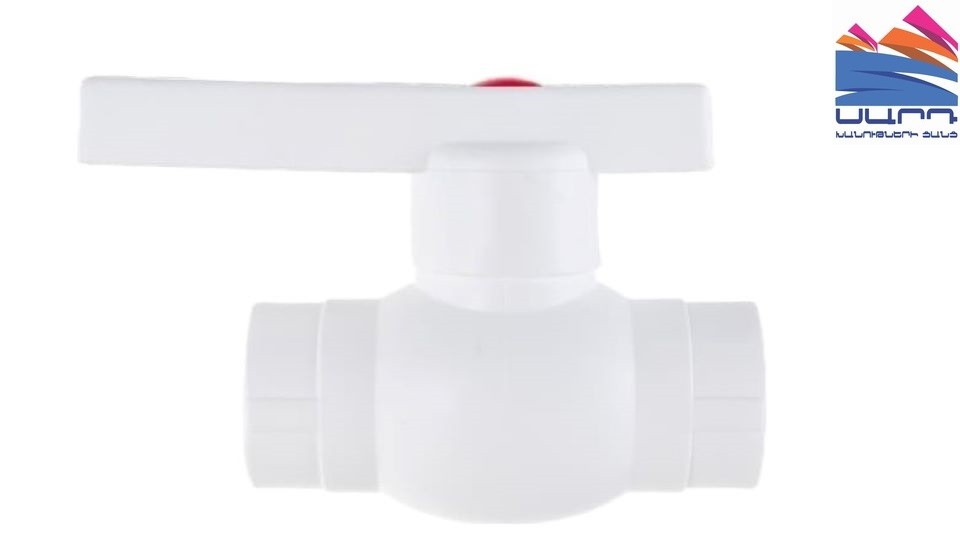

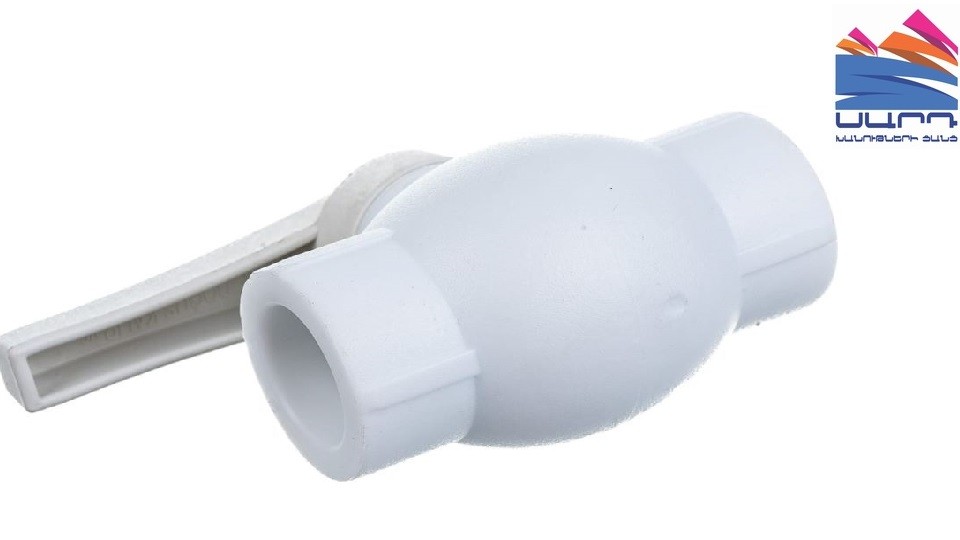

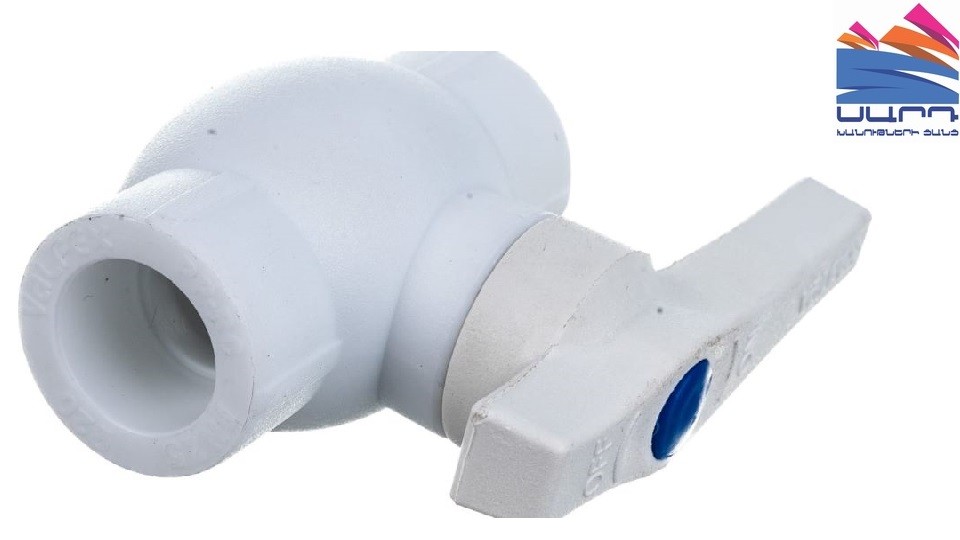

Ball Valve 50mm Valfex

Details

Ball valves are used as shut-off valves of systems made of statistical polypropylene copolymer (PP-R) for household and drinking water supply and low-temperature heating, high-temperature heating by heating devices, as well as for transporting other liquid media to which the pipe material is chemically resistant. It is produced by injection molding.

Appointment: to completely block the flow, it has two working positions - "open-closed".

Brand: Valfex

Code,
Pipe Diameter (mm): 10144020 - 20
10144025 - 25
10144032 - 32
10144040 - 40
10144050 - 50
10144063 - 63

Material: Polypropylene + Brass

Welding type: under welding

Operating temperature: 80°C.
Maximum operating temperature: 90°C.

Nominal pressure, PN: 25 bar.

Installation technology: bell-shaped polyfusion welding.

Color: White/Grey
