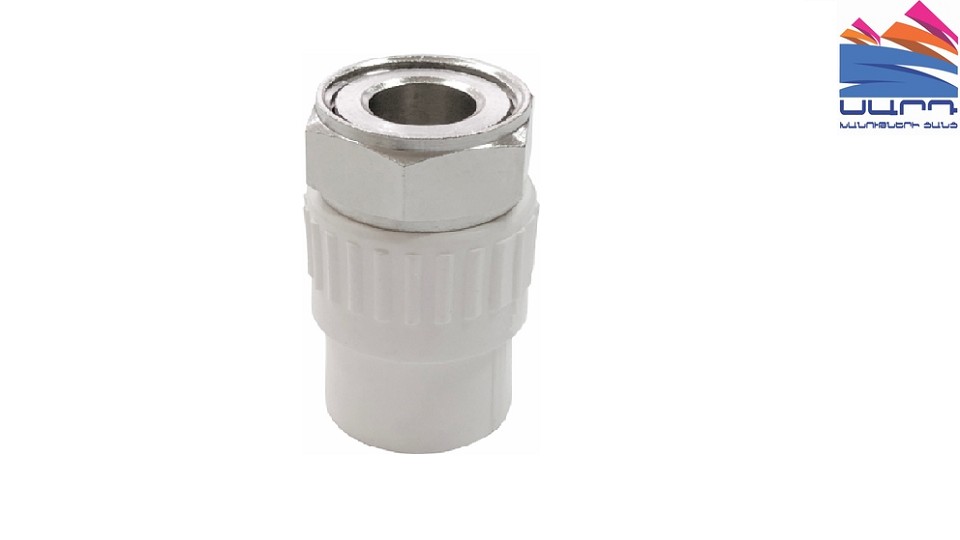

Coupling with cap nut 32 x 1" BP Valfex

Details

The coupling with a cap nut is a straight combined polypropylene fitting designed to connect a polypropylene pipe and a component of an engineering system with a threaded connection. Installation is carried out by means of a cap nut.

Purpose: it is a removable connection between plastic and metal pipes.

Brand: Valfex

Code,
Connection diameter: 10139020 - 20x1/2;
10139025 - 25x3/4";
10139332 - 32x1";

Thread Type: internal

Material: PPR.
The material of the embedded part: brass LS59-1.

Operating temperature: 80°C
Maximum operating temperature: 90°C.

Nominal pressure, PN: 25 bar.

Installation technology: bell-shaped polyfusion welding.

Color: White/Grey

Country of origin: Russia
