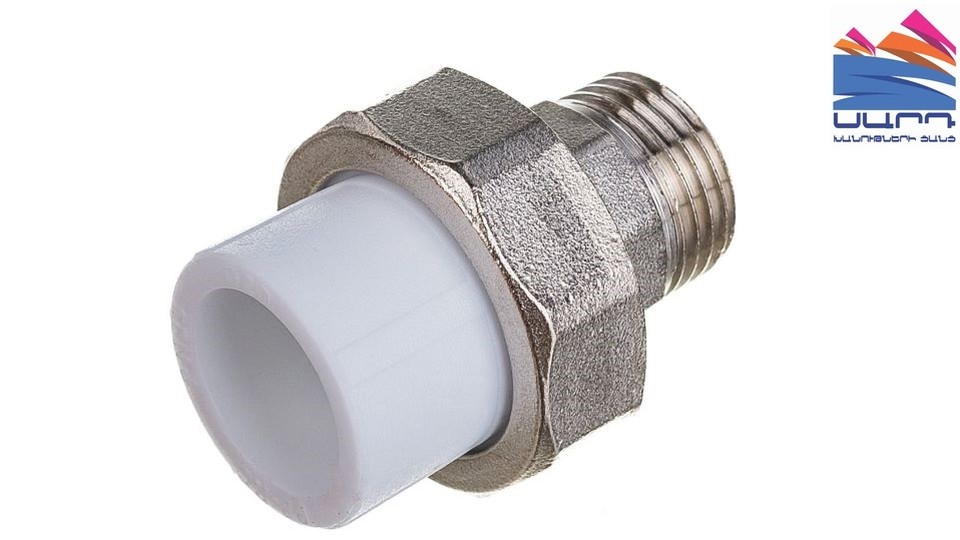

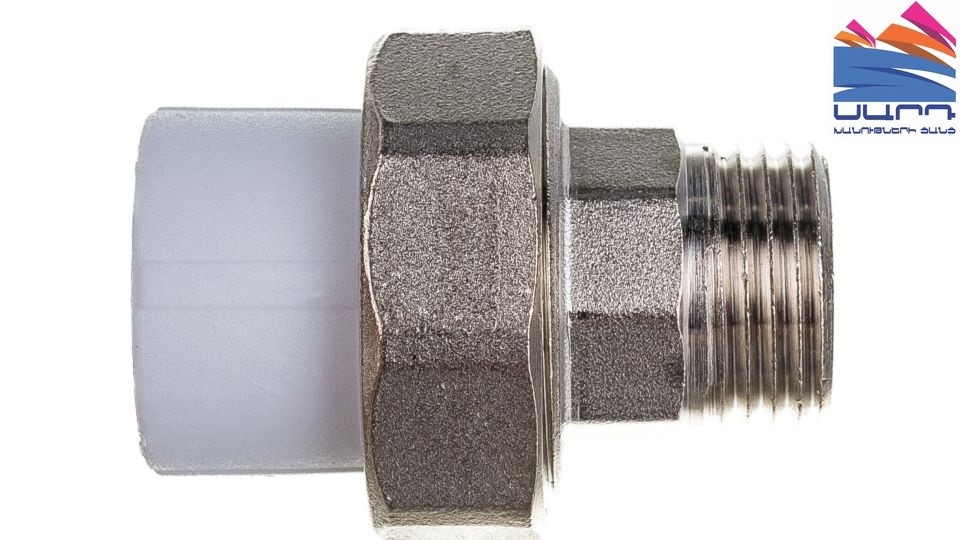

The coupling is combined razemn. 32 x 1" HP Valfex

Details

Combined polypropylene fitting, the embedded part is made of brass of the LS-59-1 brand. It is a detachable connection between a metal and plastic pipe. Brass parts are produced by hot stamping, plastic parts are produced by injection molding.

It is used to create a detachable connection of a polypropylene pipeline with a pipeline or fittings made of other materials using a cap nut.

The sealing ring is made of EPDM.

The design is resistant to temperature changes.

Purpose: to create a detachable connection of a polypropylene pipeline with a pipeline or fittings made of other materials using a cap nut.

Brand: Valfex

Code,
connection diameter 10156015 - 20 x 1/2"
10156020 - 25 x 3/4"
10156025 - 32 x 1"
10156032 - 40 x 1 1/4"

Type of thread external

Material: PPR. (polypropylene)
Material of detachable joints: brass LS-59-1.

Operating temperature: 80°C
Maximum operating temperature: 90°C.

Nominal pressure, PN: 25 bar.

Installation technology: bell-shaped polyfusion welding.

Color: White/Grey

Country of origin Russia
