Coaxial DN60/100 Buderus kit

Details

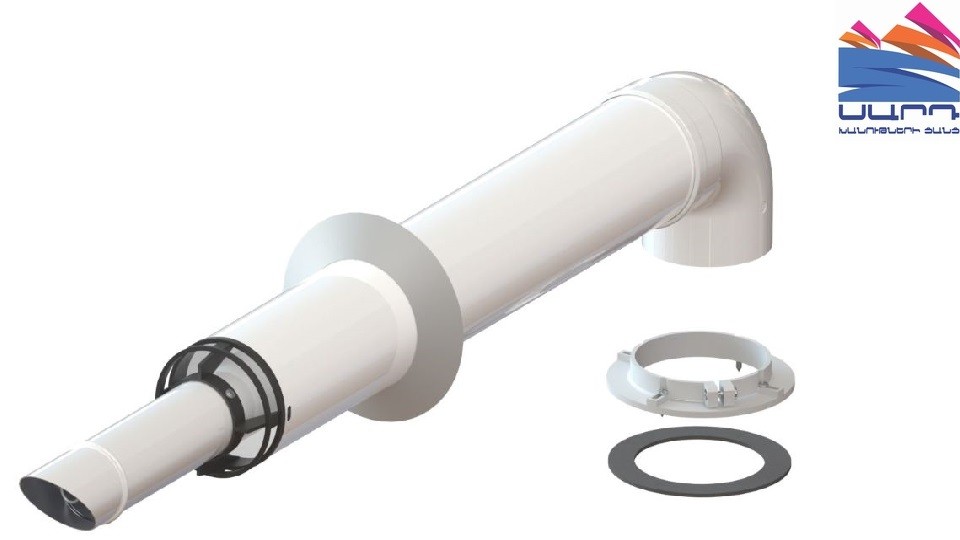

Telescopic horizontal coaxial Buderus smoke removal kit DN60/100 with variable length (425-725 mm). The kit is suitable for Buderus boilers with a closed combustion chamber having a coaxial flue gas exhaust system, namely, for boilers of the Buderus Logamax U052/54, Buderus Logamax U072 and Buderus Logamax U042/44 series.

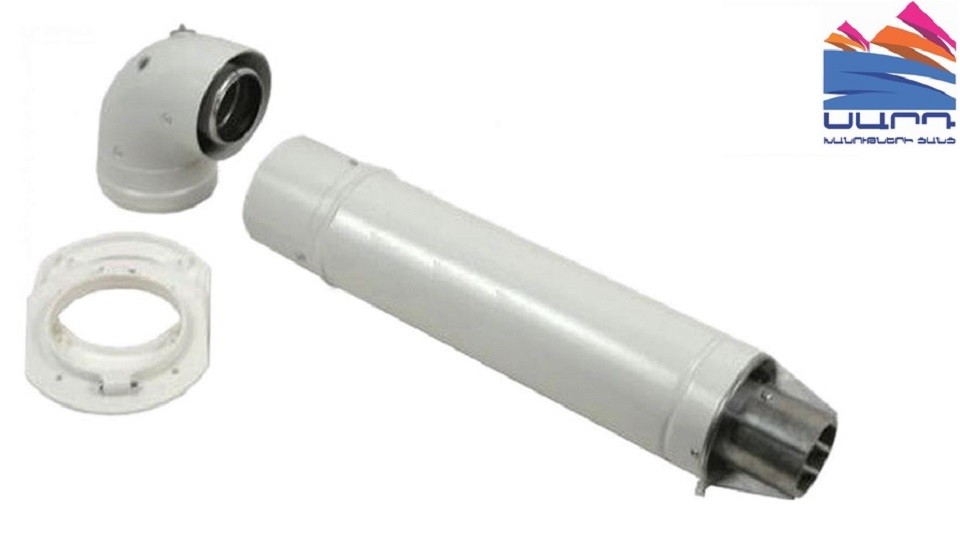

The delivery package includes:

-90° elbow with boiler connection flange

-Section of coaxial telescopic chimney/duct 60/100 mm

-Cuffs for the design of the passage through the wall

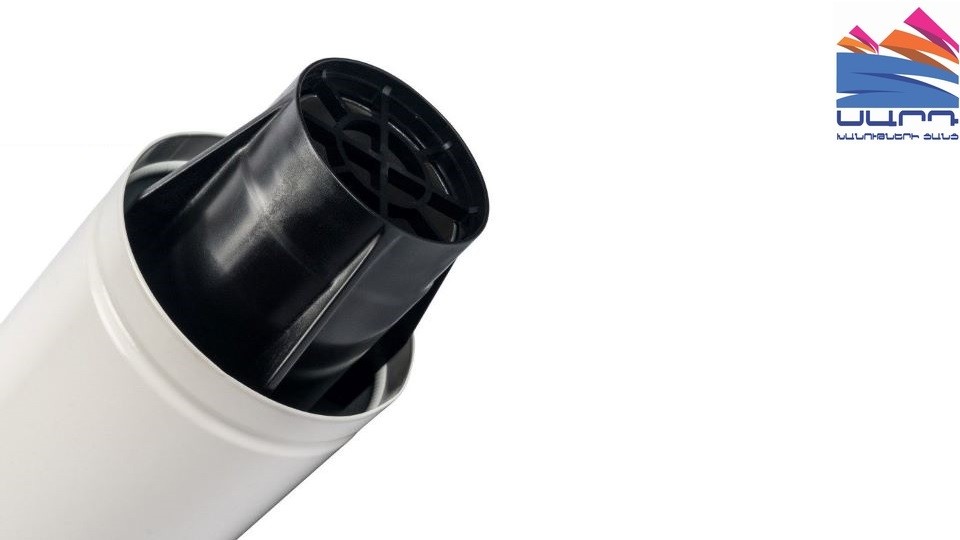

-Head for separation of flue gases and intake air

-A set of gaskets, clamps and screws necessary for installation


Technical specifications:

Product dimensions 100x725x100 mm

Material of manufacture Steel

Purpose Chimney construction

Scope of application Smoke removal

Type of accessory Chimney
