Membrane tank for heating R50 Flamco

Details

Expansion tank for heating

The Flamco Flexcon R membrane expansion tank is designed to compensate for thermal expansion of the coolant and maintain pressure in the heating or cooling system.

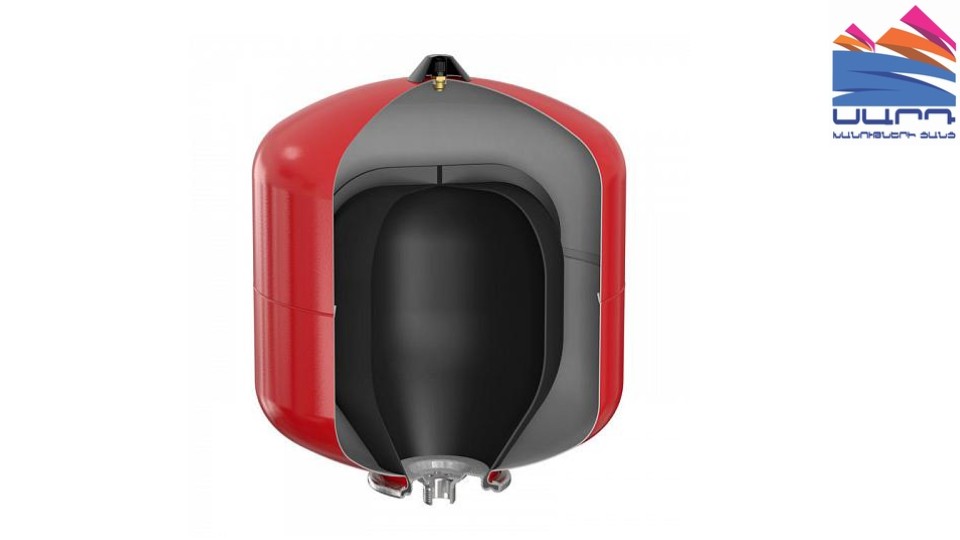

Flamco expansion tanks are equipped with EPDM membranes of a special shape, manufactured in Europe, which provide a long service life of the tank.
Also, Flamco FL tanks are equipped with valves from the Netherlands. They eliminate pressure leaks, ensure the stability of the system and reduce maintenance costs.
Flexcon R membrane tanks are made of high-strength steel. Special surface treatment guarantees corrosion protection for 10 years. The welds are subjected to 100% ultrasonic inspection.
A multi-operational automated paint line and control of adhesion parameters and paint coating thickness allow you to maintain the flawless appearance of the tank for a long time.
Flamco liter tanks are delivered in a convenient and reliable package.

Appointment: for heating and cooling systems

Type
of expansion tank: Membrane

Brand: Flamco

Code : 16053RU

Width, mm 390
Height, mm 620
Depth, mm 390

Weight, kg 9.8

Colour: Red

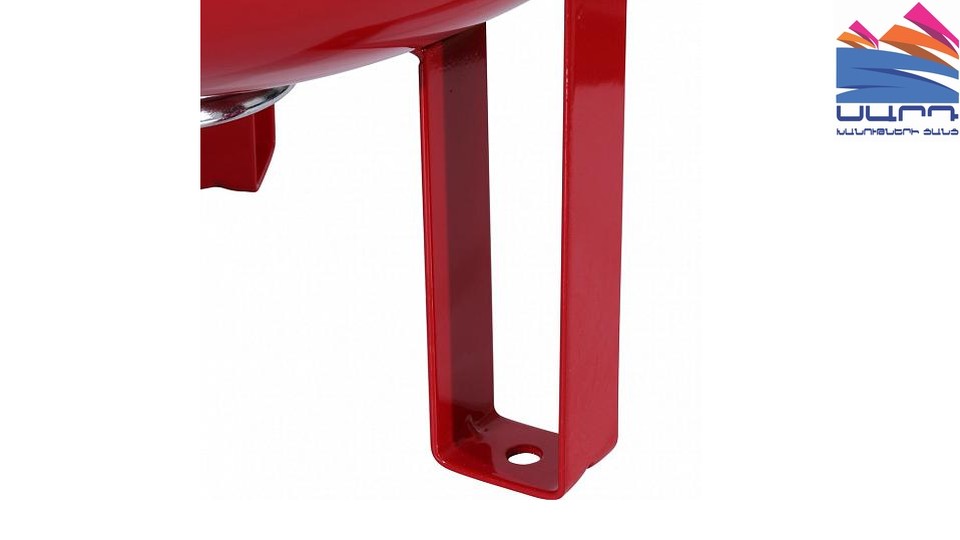

Type: Vertical (with legs)

Volume , l 50

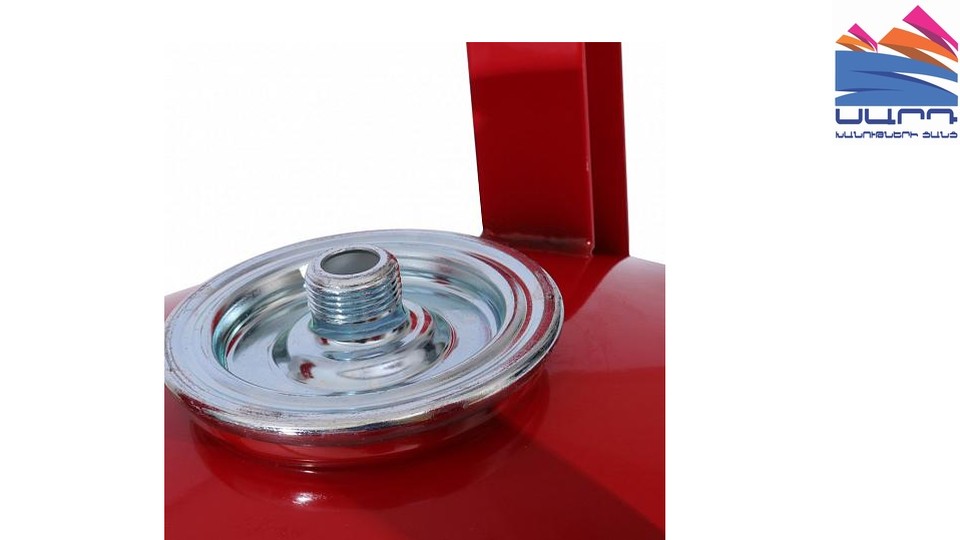

Connection diameter, inch 3/4"

Installation type Wall Mounted

Max. working pressure 6 bar
Factory setting of 1.5 bar pressure

Max. operating temperature 70 °C
Min. operating temperature, -10°C

Connection External thread

Membrane material EPDM rubber
Case Material Steel

Design of the tank Cylinder

Country Russia
