Details

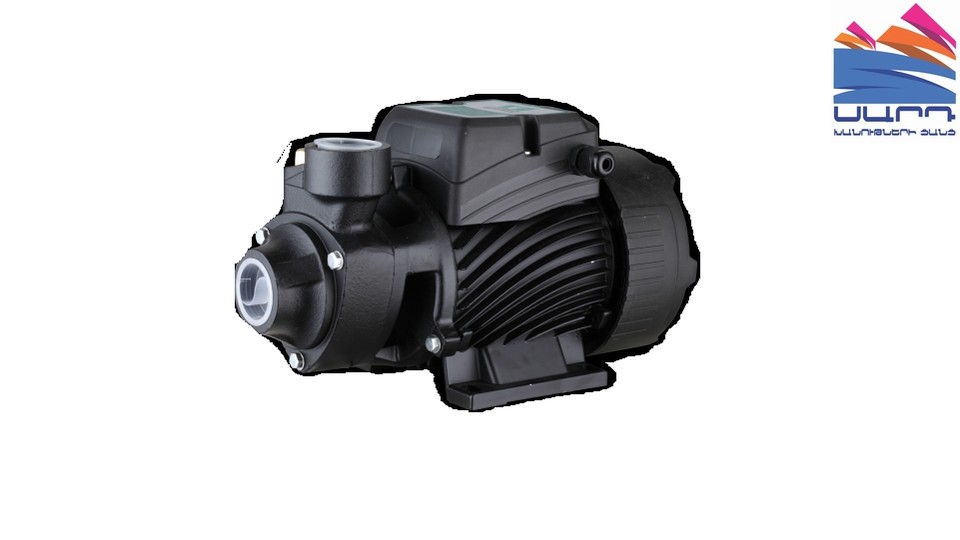

The Pumpman QB 80 surface vortex pump is designed for domestic use and is used for pumping clean water, lifting water from wells and wells, irrigation, increasing water pressure in water supply systems. This series creates a large head with compact dimensions and low power consumption, but the design of the impeller limits the amount of sand in the pumped liquid to 10 g/m3. If it is intended to pump water with a high sand content, it is recommended to use the Pumpman JET and SGJ series. The protective cataphoresis coating of the working chamber and the brass impeller significantly extend the service life and protect all parts of the pump in contact with the liquid from corrosion. The built-in thermal protection of the motor prevents overheating of the motor when jamming or voltage surges. In case of overheating, the pump automatically turns off and starts only after the engine has cooled down (30-40 minutes).

The Pumpman QB pump housing is made of cast iron and aluminum. The maximum suction depth is 8 meters. The impeller is made of brass. The diameter of the hose connection is G 1". The motor winding material is 100% copper. The pump is capable of pumping liquid with a temperature from 0 oC to +45 oC. The ambient temperature is up to +40 ° C. The degree of protection of the housing is IP54 (dustproof, splash protection), insulation class – B (up to +155 oC). The warranty is 1 year for the device, 5 years for the electric motor. You can buy a vortex surface Pumpman QB 80 pump in the online store duim24.ru at the best price with delivery.

Technical specifications:
Manufacturer Pumpman

QB 80 Series and Model

Category pumps

Type self-priming pump for water supply / water pumping

Type surface Principle of operation vortex

Body material cast iron / aluminum

Water quality pure water

The temperature of the pumped liquid is 0 ... +45 oC

Maximum vertical head 53 m
Maximum flow rate 45 l/min
The maximum suction depth is 8 m

Connection to the hose thread G 1"

Maximum power consumption 750 W

Rated voltage 220±10% In
Mains frequency 50 Hz Impeller material brass

Motor winding 100% copper

The engine is oil-filled

Enclosure protection class IP54 Insulation class

Overheating protection yes, motor thermal protection
